1000kg Counterbalanced Fork Lift

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
MeiShi
Model Number:
CPD10-SX1025
Type:
forklift
Power Souce:
DC Motor
Rated Loading Capacity:
1000kg
Max. Lifting Height:
2500mm
Min. Lifting Height:
65mm
Fork Length:
800mm
Fork Width:
220~540mm
Certification:
CE/ISO9001
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
300 Piece/Pieces per Month
Packaging & Delivery
Port
Shanghai
Lead Time :
5~15 days



Product Description



Detailed Product Description of CPD10SX Fork Lift



Main character

  • Compact structure,light and flexible
  • Imported controller,no noise and no pollution
  • Lifting by operationg lever,safe and steady
  • Optional imported handle



Product Model designation



CPD10SX

Drive Unit



Electric

Operation type



Pedestrian

Load capacity

kg

1000

Load center

mm

400

Overall length

mm

2295

Overall width

mm

842

Overall height

mm

1860

Lift height

mm

2500

Max working height

mm

3275

Free lift height

mm

140

Fork dimensions

mm

800×100×32

Maximum fork width

mm

540

Minimum ground clearance

mm

80

Min. aisle width for stacking

mm

2680 (for Pallet 1200×800)

Mast obliquity

°

1/7

Wheelbase

mm

1130

Front overhang

mm

120

Turning radius

mm

1380

Travel speed

loaded

Km/h

5.7

unloaded

Km/h

6.3

Lift speed

loaded

mm/s

100

unloaded

mm/s

140

Lowering speed

loaded

mm/s

181

unloaded

mm/s

175

Gradeability

%

5

Brake type



Electric-magnetic

Drive motor power

KW

1.2

lift motor power

KW

2.0

Battery capacity/voltage

Ah/V

240/24

Weight without battery

kg

1235

Battery weight

kg

235











































































-CPD



Packaging & Shipping

  copy





Company Information

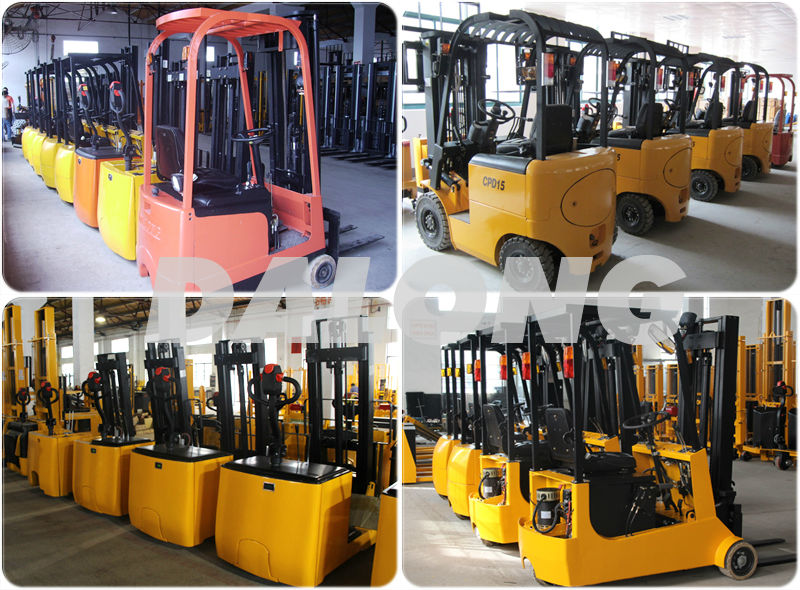

     Our factory has been built up for about 40 years. We are a Manufactory which mainly produce Electric forklifts, includes Electric Pallet Truck, Electric Stacker, Electric Reach Truck and so on. We do OEM for many trading companies. Our products mainly exported to European Market.

-
