Reach Stacker,1300kg Capacity, Electric Power Steering, AC Motor

FOB Reference Price:Get Latest Price
US $5,000-7,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
MEI SHI
Model Number:
CQD10SZ /13SZ
Type:
Reach Truck
Power Souce:
DC Motor
Rated Loading Capacity:
1000-1300KG
Max. Lifting Height:
2500-3300mm
Min. Lifting Height:
65mm
Fork Length:
900mm
Fork Width:
230-670(750)mm
Certification:
CE/ISO9001
After-sales Service Provided:
Overseas third-party support available
SupplyAbility
SupplyAbility:
200 Piece/Pieces per Month
Packaging & Delivery
Port
Shanghai, Ningbo
Lead Time :
Shipped in 15 days after payment



Product Description





Detailed Product Description of CQD10SZ/13SZ Reach Stacker

Main character



  • Beautiful shape, reasonable and advanced structure
  • It has electromagnetism brake and flexible turning

  • Easy operation and has wide vision
  • It has steady lifting, declining and fast reaction

  • Optional imported handle



Product Model designation



CQD10SZ

CQD13SZ

Drive Unit



Electric

Operation type



Pedestrian/Standing

Load capacity

kg

1000

1300

Load center

mm

500

Overall length

mm

1900

1900

Overall width

mm

1000

Overall height

mm

1840/2240

1840/2240

Reach length

mm

550

Lift height

mm

2500/3300

2500/3300

Max working height

mm

3431/4231

3431/4231

Free lift height

mm

140

Fork dimensions

mm

900×100×35

Maximum fork width

mm

230-670 (Adjustable)

230-670 (Adjustable)

Fork obliquity

°

3/5

Minimum ground clearance

mm

60

Wheelbase

mm

1180

Front overhang

mm

110

Turning radius

mm

1485

1485

Travel speed

loaded

Km/h

7.1

unloaded

Km/h

7.9

Lift speed

loaded

mm/s

98

unloaded

mm/s

132

Lowering speed

loaded

mm/s

191

unloaded

mm/s

157

Brake type



Electric-magnetic

Drive motor power

KW

2.0

lift motor power

KW

2.0

Battery capacity/voltage

Ah/V

240/24

240/24

Weight without battery

kg

1201/1251

1358/1408

Battery weight

kg

235

235









































































-CQD



Packaging & Shipping

  copy

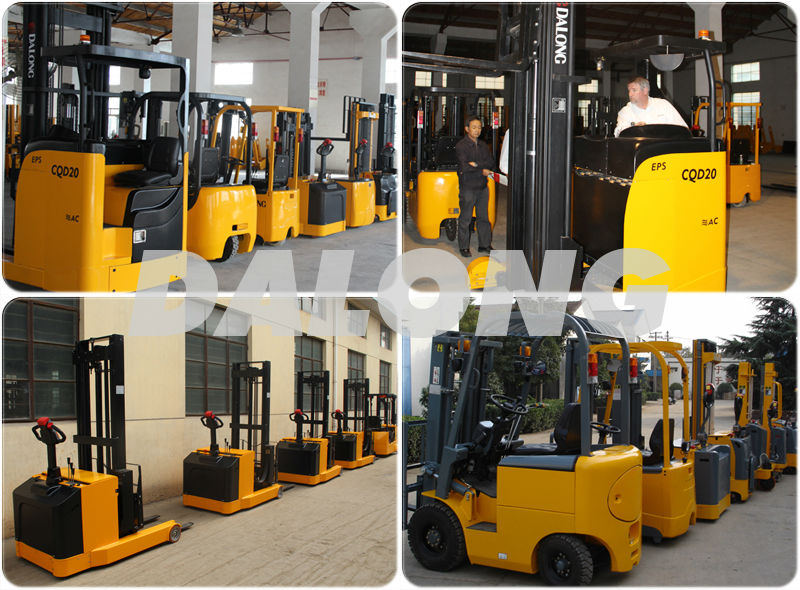

Company Information

     Our factory has been built up for about 40 years. We are a Manufactory which mainly produce Electric forklifts, includes Electric Pallet Truck, Electric Stacker, Electric Reach Truck and so on. We do OEM for many trading companies. Our products mainly exported toEuropean Market

-
