2500kg Capacity, Electric Pallet Jack, Manual Lifting, 12 hours useage time

FOB Reference Price:Get Latest Price
US $2,000-2,500 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
MeiShi
Model Number:
CBD20-C25
Lift Drive / Actuation:
Electric Motor
Type:
Powered Pallet Truck
Power Souce:
DC Motor
Rated Loading Capacity:
2500kg
Max. Lifting Height:
85mm
Min. Lifting Height:
205mm
Battery Capacity:
210Ah/24v
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pc/wooden pallet, packing size:1900x800x1400mm
Port
Shanghai
Lead Time :
Shipped in 7 days after payment



Product Description

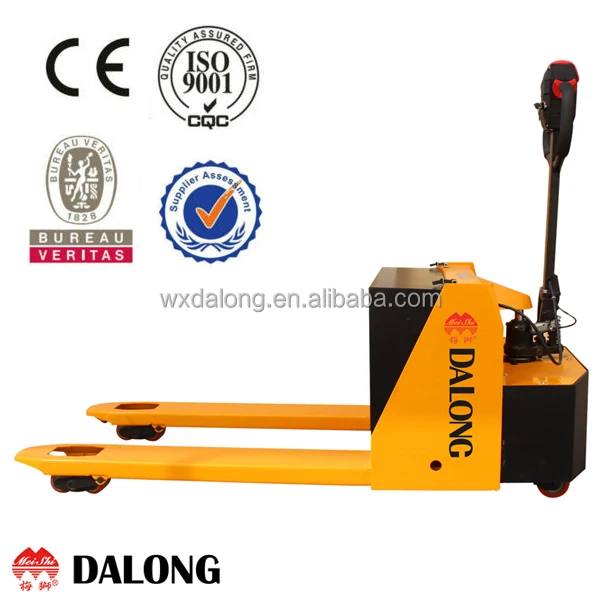

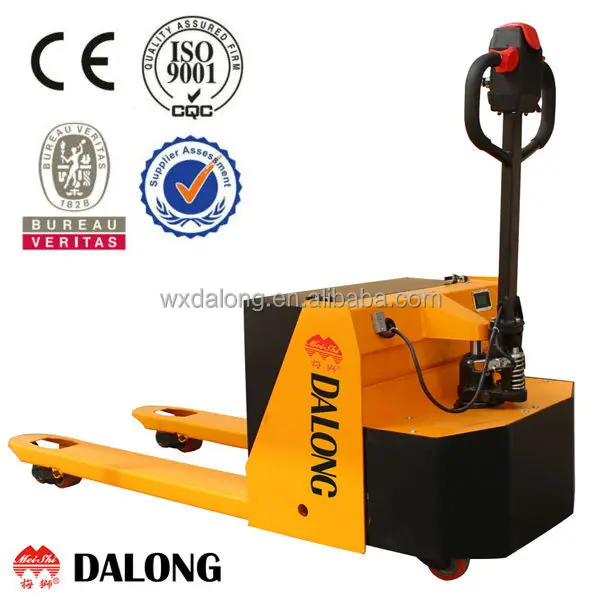

Detailed Product Description of CBD Series Electric Pallet Jack



Main character

  • Manual lifting, power traveling
  • High-strength frame design, suitable for tough workplaces, ensures longer service life
  • Configure with 210Ah large capacity battery, can keep work more than 12 hours
  • Reliable and safe brake, flexible operation and steady starting
  • 3-gear resistance speed adjustment, can choose to install poleless speed adjustment


CBDC-1CBDC-2

Identification

Model



CBD20

Config-code

resistance speed adjustment



C20

C25

poleless speed adjustment



CW20

CW25

Drive Unit



Semi-electric

Operation type



Pedestrian

Load capacity



kg

2000

2500

Dimension

Overall length

L

mm

1800

Overall width

b

mm

730

Overall height

H2

mm

1310

Min. fork height

h1

mm

85

Max. fork height

h2

mm

205

Fork dimensions

L1×b2×m

mm

1150x160x60

Maximum fork width

b1

mm

520 / 680

Turning radius

Wa

mm

1610

Wheelbase

Y

mm

1405

Performance

Travel speed

loaded

Km/h

5.0

5.0

unloaded

Km/h

9.1

Brake type



Electric-magnetic

Electric Motor

Drive motor power

KW

0.75

Battery

Ah/V

210/24

210/24

Weight

Weight w/o battery

kg

275

287

Battery weight

kg

185

185



-CBD

-CBDA













Packaging & Shipping

  copy





Company Information

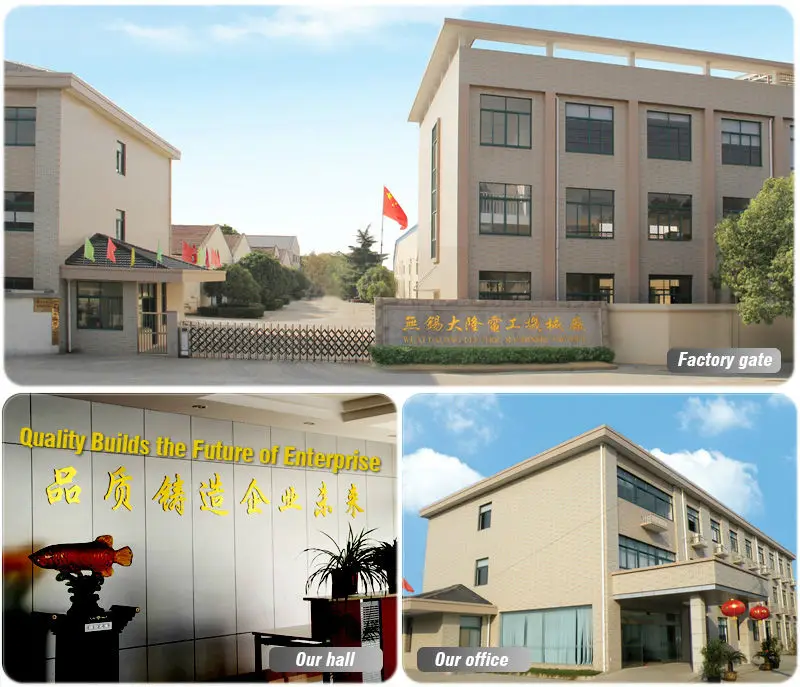

     Our factory has been built up for about 40 years. We are a Manufactory which mainly produce Electric forklifts, includes Electric Pallet Truck, Electric Stacker, Electric Reach Truck and so on. We do OEM for many trading companies. Our products mainly exported toEuropean Market.

-
