1500kg Battery Operated Lift Truck

FOB Reference Price:Get Latest Price
2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
MeiShi
Model Number:
CDSD15A
Type:
Lift Truck
Power Souce:
DC Motor
Rated Loading Capacity:
1500kg
Max. Lifting Height:
1600-3300mm
Min. Lifting Height:
90mm
Fork Length:
1150mm
Fork Width:
540mm
Certification:
CE/ISO9001
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
600 Piece/Pieces per Month
Packaging & Delivery
Port
Shanghai
Lead Time :
2~10 days



Product Description





Detailed Product Description of CDSD15A Battery Operated Lift Truck



Main Character



  • Electric braking is safe, flexible and travels steadily
  • Heavy-duty design with compact structure and is easily operated
  • It has light weight, solid designed carriage and strong capacity
  • Large capacity storage battery keeps longtime working



Model

Unit

CDSD10A / CDSD15A

Capacity

mm

1000/1500

Load center

mm

600

Min fork height

mm

≤90

Max lifting height

mm

1600

2450

2900

3100

3300

Max working height

mm

2090

2980

3430

3630

3830

Stacker height

mm

2090

1800

2025

2125

2225

Fork outer width

mm

540

Single fork width

mm

160

Min turning radius

mm

1500

Max lifting speed

Unloaded

mm/s

94

Loaded

mm/s

64

Max decline speed

Unloaded

mm/s

74

Loaded

mm/s

106

Storage battery

Ah/V

120/12  27.5kg

Overall dimension

Length

mm

1820(CDSD1.0A) / 1837(CDSD1.5A)

Width

mm

800

Height

mm

2090

1800

2025

2125

2225

Net weight

(Without battery)

CDSD1.0A

kg

440

507

531

545

554

CDSD1.5A

kg

500

567

591

605

614

-CDSD-CDDA-CDDH



Packaging & Shipping

  copy





Company Information

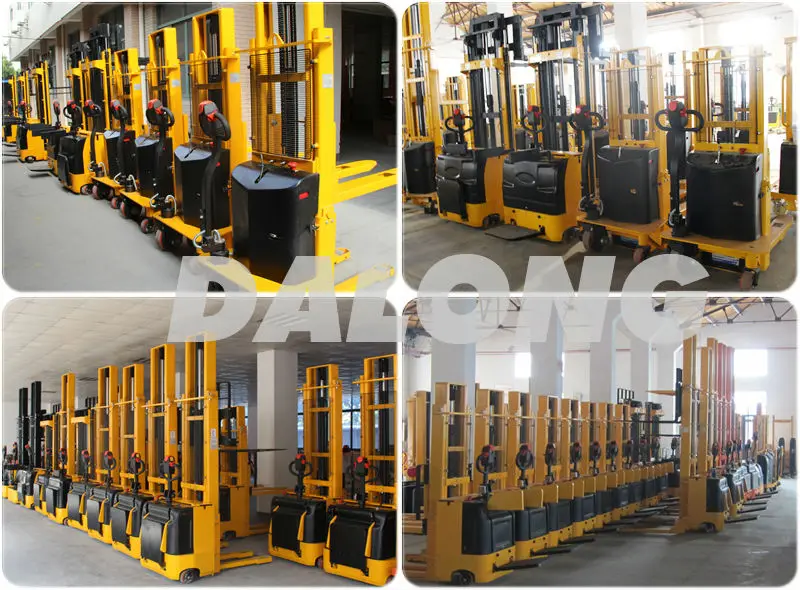

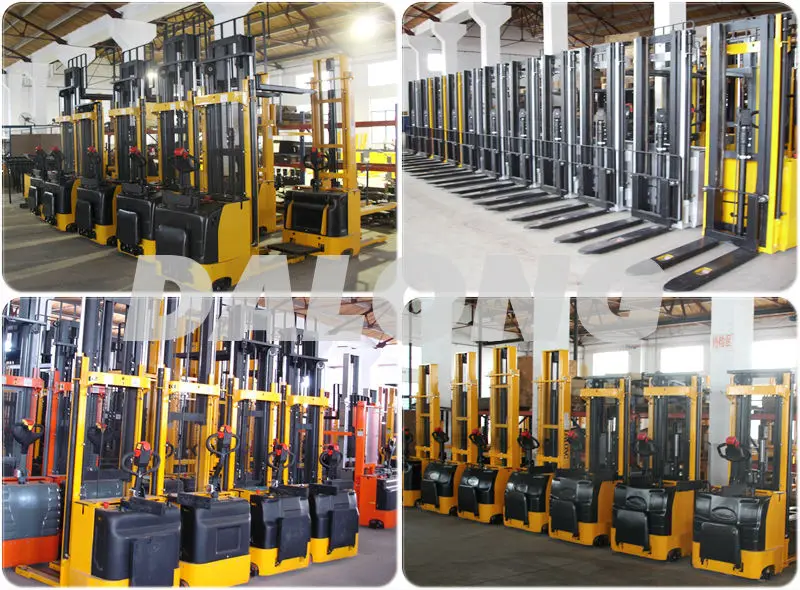

       Our factory has been built up for about 40 years. We are a Manufactory which mainly produce Electric forklifts, includes Electric Pallet Truck, Electric Stacker, Electric Reach Truck and so on. We do OEM for many trading companies. Our products mainly exported toEuropean Market.

-
